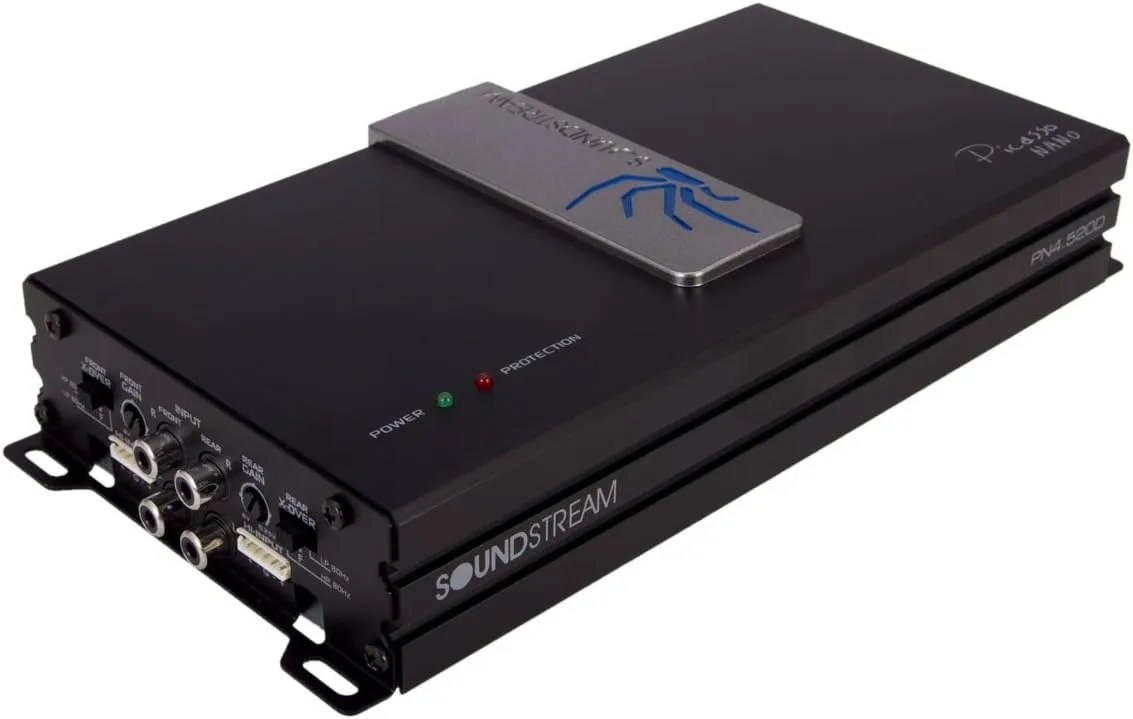

PN4.520D

• Power Handling:
• • RMS: 4 ohms: 100 watts x 4 chan.
  • RMS: 2 ohms: 130 watts x 4 chan.
  • RMS: 4 ohms, Bridged: 260 x 2 chan.
  • Peak: 520 watts
• Pulse Width Modulated MOSFET power supply
• Heavy duty aluminum heatsink
• Soft turn-on circuit
• Thermal and speaker short protection circuitry
• Dash mount remote bass level control included
• Variable Bass Boost (0 to 12 dB bass boost at 80 Hz)
• 4 and 2 channel operation
• 180° phase switch
• Speaker-level (high-level) inputs with signal sensing for automatic turn-on
• Variable low-pass filter (50-250 Hz, 24 dB/octave)
• Subsonic filter (12 dB at 10-50 Hz)
• 4 gauge power and ground wiring is required for installation
• Dimensions: 4.75"W x 9"L x 2"H
• 1 Year Warranty
