Refrigerant Pressure Controls SPST, except where notedDual-Pressure ControlsCombine high-pressure compressor protection with low-pressure, cycling, or safety functions. For R-12, R-22, R-134A, and R-502.

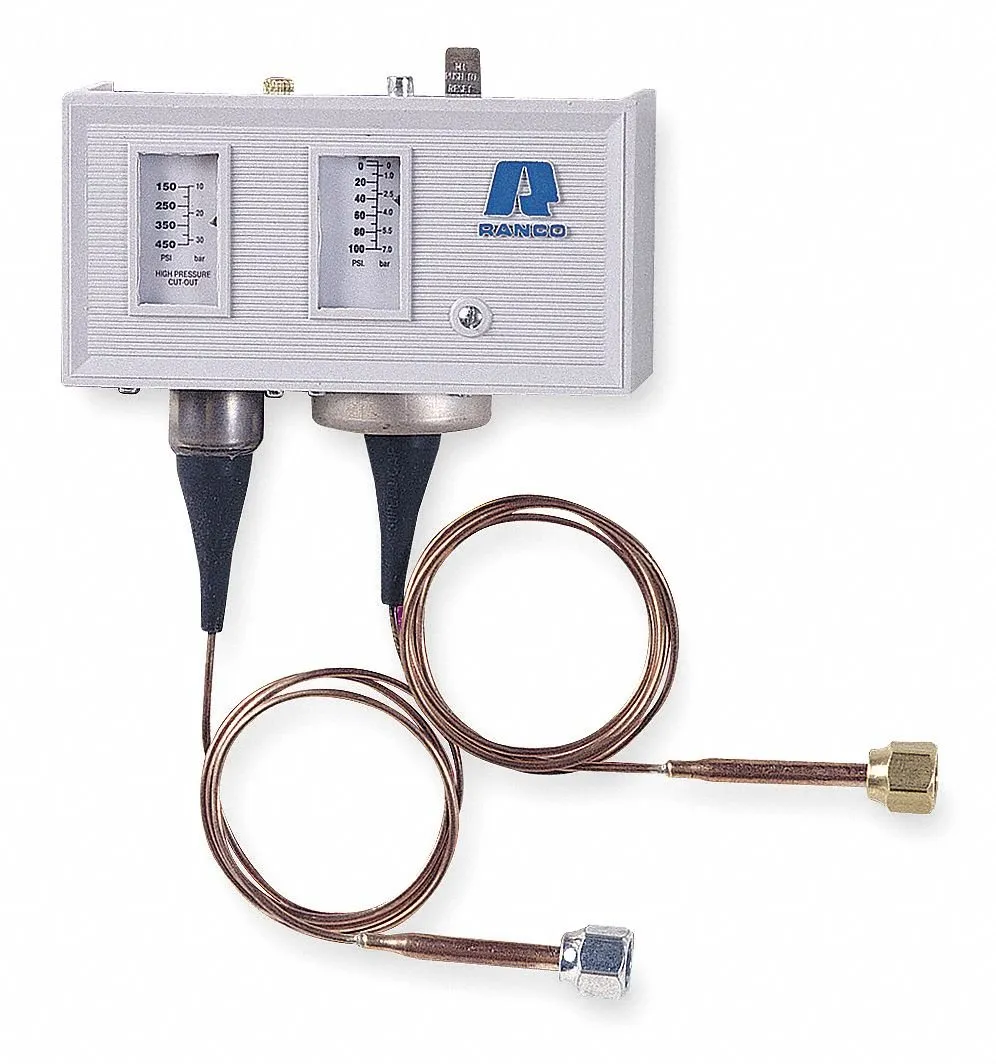

Item: Dual Pressure Control
Switch Type: SPST
Low Pressure Range (PSIG): 12 to 50
High Pressure Range (PSIG): 150 to 450
High Pressure Differential (PSIG): 70 Fixed
Low Pressure Differential (PSIG): 5 to 35
Reset Low: Auto
Reset High: Auto/Man
Pressure Connection: 48" Capillary
Mounting: Any Position
Main Switch Off Time (Sec.): 40-110
Main Switch On Time (Sec.): 1-20
Voltage: 24/240
For Use With: R-12, R-22, R-134A and R-502, Commercial Refrigeration and Air Conditioning
Characteristics: High Pressure Compressor Protection with Low Pressure, Cycling or Safety Functions
Includes: NEMA 1 Enclosure, Nonconductive Cover

• Product Dimensions ‏ : ‎ 5 x 2 x 8 inches; 2 Pounds
• Date First Available ‏ : ‎ July 22, 2010
• Manufacturer ‏ : ‎ CAI - RANCO
